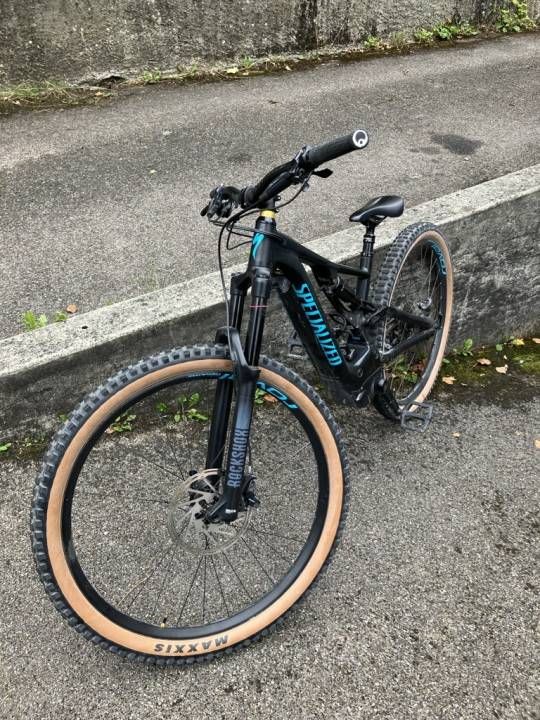

Specialized Men's Turbo Levo FSR 29", Grösse M

Technische Daten
• Marke: Specialized
• Farbe: Black/Nice Blue; Hyper/Black
• Rahmen Grösse M: Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
• Dämpfer: RockShox Deluxe RT w/ custom air valve, 150mm of travel
• Gabel: RockShox Sektor RL, 29" Boost™, 150mm of travel
• Vorbau: Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
• Lenker: Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
• Lenkergriffe: Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
• Bremse vorne: SRAM Level T, hydraulic disc, 4-Piston Caliper, 200mm
• Bremse hinten: SRAM Level T hydraulic disc, 2-Piston Caliper, 200mm
• Schaltwerk: SRAM NX, 11-speed
• Schalthebel: SRAM S700, single-click lever
• Kassette: SRAM PG-1130, 11-speed, 11-42t
• Kette: KMC X11ET, 11-speed w/ Missing Link™
• Kurbelgarnitur: Praxis, 2D cold-forged alloy, custom offset, 165mm
• Kettenblätter: 32T, custom steel
• Felgen: Roval Traverse 29, hookless alloy, 30mm inner width, tubeless ready
• Vorderradnabe: Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
• Hinterradnabe: Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
• Speichen: DT Swiss Industry
• Vorderreifen: Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
• Hinterreifen: Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
• Sattel: Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
• Sattelstütze: Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
• Motor: Specialized 2.1, custom Rx Trail-tuned motor, 250W nominal
• Lenkerfernbedienung: Specialized TCU, 10-LED state of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, handlebar remote with walk-assist
• Akku: Turbo M2-500, fully integrated w/ rock guard, 500Wh
• Ladegerät: Custom charger, 42V4A w/ Rosenberger plug
• Kabelbaum: Custom Specialized wiring harness

Maße
• Rahmengröße: S, M, L, XL
• Stack: 606, 606, 634, 647 mm
• Reach: 415, 435, 455, 480 mm
• Steuerrohrlänge: 95, 95, 125, 140 mm
• Steuerrohrwinkel: 66.04, 66.04, 66.04, 66.04 degrees
• Tretlagerhöhe: 347.5, 347.5, 347.5, 347.5 mm
• Tretlagerabsenkung: 27, 27, 27, 27 mm
• Nachlauf: 111, 111, 111, 111 mm
• Gabellänge, gesamt: 560, 560, 560, 560 mm
• Gabelbiegung / Offset: 51, 51, 51, 51 mm
• Mitte Tretlager - Mitte V.-achse: 729, 749, 781, 812 mm
• Kettenstreben-Länge: 455, 455, 455, 455 mm
• Radstand: 1182, 1202, 1235, 1266 mm
• Oberrohrlänge horizontal: 577, 600, 631, 664 mm
• Überstandshöhe: 760, 760, 781, 787 mm
• Sitzrohrlänge: 380, 410, 455, 505 mm
• Sitzrohrwinkel: 75.04, 74.79, 74.48, 74.14 degrees
• Kurbellänge: 165, 165, 165, 165 mm
• Lenkerbreite: 780, 780, 780, 780 mm
• Vorbaulänge: 45, 45, 45, 45 mm
• Sattelbreite: 143, 143, 143, 143 mm
• Länge Sattelstütze: 375, 375, 435, 435 mm
